Accessories For Vibrating Screens General Features



A WIDE RANGE OF VIBRATING SCREEN ACCESORIES FOR YOUR SCREENING OPERATIONS

Vibrating screens need to vibrate in a linear motion, the screens need to be correctly tensioned and washing requires proper nozzles. We offer a wide range of accessories for vibrating screens to ensure proper and safe operation.



Fixing Instruments and Bolts For Screen Panels

Screen panels require proper tension and bedding to perform at their best with minimum breakdowns. Cappings act as a bumper between the deck and screen mesh. It is very important to fix the screen mesh tight to the deck as a lose connection will destroy the screen in a short period of time.



TENSION RAIL OF FIXING INSTRUMENTS

Thickness – 6 mm / 0.25″
Length 2 m – 2.5 m – 3 m / 6′ – 8′ – 10′ (Other dimensions on request).
Angle – 45-90°
Width – 7-9 cm / 2.75″-3.55″





TYPES OF MESH FIXING BOLTS

U-Bolts
Wide U-Bolts
J-Bolts





Anti-Vibration Mounts - Rubber Buffers For Vibrating Screens

Anti Vibration Mounts or Rubber buffers are an important part of a vibrating screen. Screen operation should be strictly linear in line with the material flow and side movements should be minimized. Especially during start/stop operations, side movements increase as the screen passes through amplitudes close to its natural frequency and it resonates. Side rubber buffers prevent the screen from moving sideways.

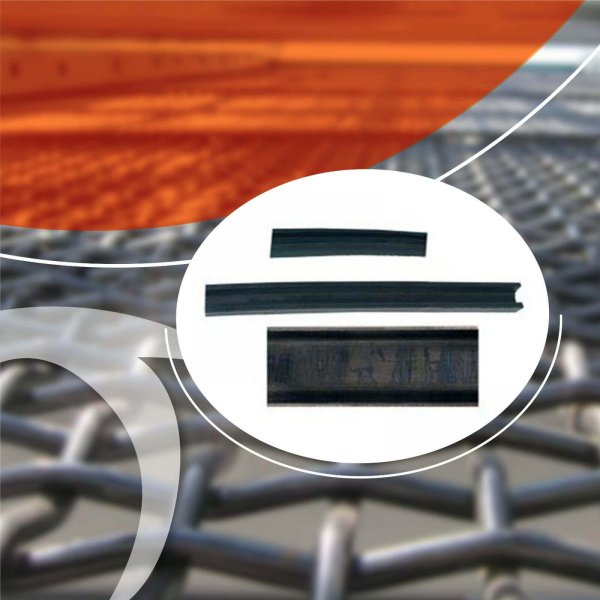

Screen Capping - Gaskets and Fittings

Cappings or Gaskets act as a bumper between the deck and screen panel. It is very important to fix the screen mesh tight on the deck as a loose connection will destroy the mesh in a short period of time.



RUBBER EXTRUSION CAPPINGS - RUBBER GASKETS

Straight capping
Thick capping
Rounded capping
T-capping



POLYURETHANE GASKETS / CAPPINGS

Straight
Rounded
T-Capping
Special Cappings
