Square Woven Wire Mesh product model and price
KESTAŞMAK_banner

Square Woven Wire Mesh | List

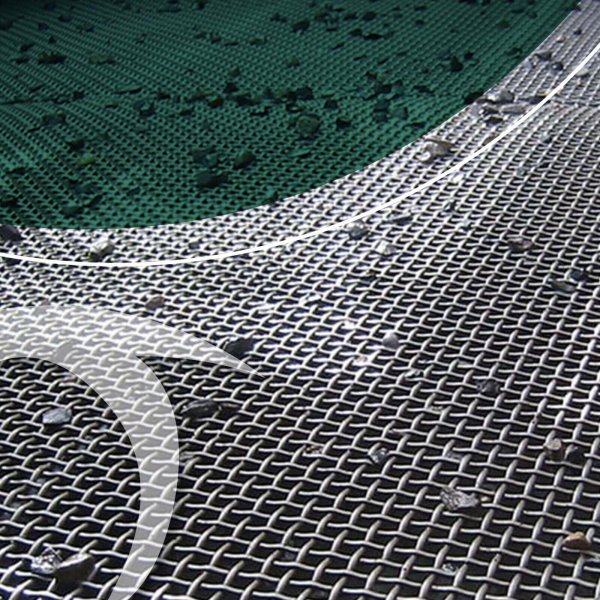

Kare Gözlü Çelik Örgü Elek KT-001

KT-001

Product Group  : Woven Vire Vibrating Screen Meshes
Category        : Square Woven Wire Mesh
Wire Thickness   : 1,4mm

Kare Gözlü Çelik Örgü Elek KT-001

Woven Vire Vibrating Screen Meshes - Square Woven Wire Mesh
Code : KT-001
In 1 hour : % 35 ~ 41 m2
You can get detailed information and price about our product with screening capacity.

Kare Gözlü Örgü Elekleri KT-002

KT-002

Product Group  : Woven Vire Vibrating Screen Meshes
Category        : Square Woven Wire Mesh
Wire Thickness   : 2,5mm

Kare Gözlü Örgü Elekleri KT-002

Woven Vire Vibrating Screen Meshes - Square Woven Wire Mesh
Code : KT-002
In 1 hour : % 37 ~ 48 m2
You can get detailed information and price about our product with screening capacity.



Square Woven Wire Mesh


Square Wire Mesh – Great Vibrating Screen Mesh with Robust Construction

Square Wire Mesh is one of the most commonly used mining screens in mining, mineral processing, quarrying and aggregating industries. Typically, it is made of wires of the same diameter that are crimped to form precise square openings and achieve maximum rigidity. Its high tensile strength, excellent vibration resistance, and long service life make it a perfect choice for obtaining accurate screening results and services at best price.



  • High mechanical strength, large carrying capability
  • High abrasion and chemical corrosion resistance
  • Excellent vibration and impact resistance
  • Large screening area
  • A long service life











As a kind of market grade general purpose wire mesh, Galvanized Square Wire Mesh offers the following features:

Great dimensional strength and stability, smooth and uniform surfaces, excellent rust resistance, fire retardant and fireproof.





Edge Types for Woven Wire Screens



Plain Hooked Edge



Inside Reinforced Formed Edge

Reinforced Shroud Edge



End Tension Reinforced Shroud Edge






Aperture Wire Diameter 1h/1m2
Screening Capacity		 Aperture Wire Diameter 1h/1m2
Screening Capacity
2 mm. 1,40 mm. 35-41 m2 15 mm. 5 mm. 55-62 m2
2,5 mm. 1,5 mm. 40-47 m2 16 mm. 5 mm. 55-62 m2
3 mm. 2 mm. 41-48 m2 17 mm. 5 mm. 56-63 m2
3,5 mm. 2 mm. 41-48 m2 18 mm. 5 mm. 57-64 m2
4 mm. 2 mm. 45-51 m2 19 mm. 5 mm. 58-64 m2
4,5 mm. 2 mm.   20 mm. 5 mm. 58-64 m2
4,75 mm. 2,5 mm.   21 mm. 5 mm. 59-65 m2
5 mm. 2,5 mm.   22 mm. 6 mm. 61-67 m2
5,5 mm. 2,5 mm.   23 mm. 6 mm. 57-64 m2
6 mm. 3 mm. 44-51 m2 25 mm. 6 mm. 57-64 m2
7 mm. 3 mm. 48-55 m2 26,5mm. 6 mm. 57-64 m2
8 mm. 3 mm. 44-51 m2 28 mm. 6 mm. 60-67 m2
9 mm. 3,5 mm. 48-54 m2 30 mm. 8 mm. 59-68 m2
10 mm. 3,5 mm. 45-56 m2 32 mm. 7 mm. 58-70 m2
11 mm. 3,5 mm. 45-56 m2 35 mm. 8 mm. 61-73 m2
12 mm. 3,5 mm. 51-57 m2 38 mm. 8 mm. 57-68 m2
12,5mm. 4 mm. 51-57 m2 40 mm. 8 mm. 58-70 m2
13 mm. 4 mm. 52-58 m2 45 mm. 8 mm. 61-72 m2
14 mm. 4 mm. 54-61 m2 50 mm. 10 mm. 64-74 m2
